ColumnsEditorRecord component
The ColumnsEditorRecord UI component is a container of record fields. The ColumnsEditorRecord should be used as a child of the ColumnsEditor component.
Configuration options
| Option | Description | Type | Default Value |
|---|---|---|---|
component |
The path to the component’s .js file, relative to RequireJS. |
String | Magento_Ui/js/grid/editing/record |
fieldTmpl |
The path to the component’s .html field template. |
String | 'ui/grid/editing/field' |
rowTmpl |
The path to the component’s .html row template. |
String | 'ui/grid/editing/row' |
templates.fields |
The object that contains the configurations for field types. | Object | {base: {...},text: {...},date: {...},select: {...}} |
templates.fields.base |
The base configurations of a record field. | Object | {parent: '${ $.$data.record.name }',name: '${ $.$data.column.index }',provider: '${ $.$data.record.name }',dataScope: 'data.${ $.$data.column.index }',imports: {disabled: '${ $.$data.record.parentName }:fields.${ $.$data.column.index }.disabled'},isEditor: true} |
templates.fields.date |
The date record field configurations. | Object | {component: 'Magento_Ui/js/form/element/date',template: 'ui/form/element/date',dateFormat: 'MMM d, y h:mm:ss a'} |
templates.fields.select |
The select record field configurations. | Object | {component: 'Magento_Ui/js/form/element/select',template: 'ui/form/element/select',options: '${ JSON.stringify($.$data.column.options) }'} |
templates.fields.text |
The text record field configurations. | Object | {component: 'Magento_Ui/js/form/element/abstract',template: 'ui/form/element/input'} |
Sources files
Extends UiCollection:
- app/code/Magento/Ui/view/base/web/js/grid/editing/record.js
- app/code/Magento/Ui/view/base/web/templates/grid/editing/row.html
- app/code/Magento/Ui/view/base/web/templates/grid/editing/field.html
Examples
Integrate the ColumnsEditorRecord component with the ColumnsEditor component
This is an example of how the ColumnsEditorRecord component integrates with the ColumnsEditor component:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
<listing>
...
<columns name="columns">
<settings>
<editorConfig>
<param name="templates" xsi:type="array">
<item name="record" xsi:type="array">
<item name="component" xsi:type="string">Magento_Ui/js/grid/editing/record</item>
<item name="fieldTmpl" xsi:type="string">ui/grid/editing/field</item>
<item name="rowTmpl" xsi:type="string">ui/grid/editing/row</item>
</item>
</param>
<param name="enabled" xsi:type="boolean">true</param>
</editorConfig>
</settings>
<selectionsColumn name="ids">
<settings>
<indexField>entity_id</indexField>
</settings>
</selectionsColumn>
<column name="entity_id">
<settings>
<label translate="true">ID</label>
</settings>
</column>
<column name="title">
<settings>
<filter>text</filter>
<editor>
<validation>
<rule name="required-entry" xsi:type="boolean">true</rule>
</validation>
<editorType>text</editorType>
</editor>
<label translate="true">Title</label>
</settings>
</column>
<column name="is_active" component="Magento_Ui/js/grid/columns/select">
<settings>
<options class="Magento\Config\Model\Config\Source\Yesno"/>
<filter>select</filter>
<editor>
<editorType>select</editorType>
</editor>
<dataType>select</dataType>
<label translate="true">Status</label>
</settings>
</column>
...
</columns>
</listing>
Result
Add custom field type to ColumnsEditorRecord
This is an example of how to add textarea and multi-select editor types to ColumnsEditorRecord component.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
<listing>
...
<columns name="columns">
<settings>
<editorConfig>
<param name="templates" xsi:type="array">
<item name="record" xsi:type="array">
<item name="templates" xsi:type="array">
<item name="fields" xsi:type="array">
<!-- add textarea field type -->
<item name="textarea" xsi:type="array">
<item name="component" xsi:type="string">Magento_Ui/js/form/element/textarea</item>
<item name="template" xsi:type="string">ui/form/field</item>
</item>
<!-- add multiselect field type -->
<item name="multiselect" xsi:type="array">
<item name="component" xsi:type="string">Magento_Ui/js/form/element/multiselect</item>
<item name="template" xsi:type="string">ui/form/element/multiselect</item>
<item name="options" xsi:type="array">
<item name="0" xsi:type="array">
<item name="value" xsi:type="number">1</item>
<item name="label" xsi:type="string" translate="true">Option #1</item>
</item>
<item name="1" xsi:type="array">
<item name="value" xsi:type="number">2</item>
<item name="label" xsi:type="string" translate="true">Option #2</item>
</item>
<item name="2" xsi:type="array">
<item name="value" xsi:type="number">3</item>
<item name="label" xsi:type="string" translate="true">Option #3</item>
</item>
</item>
</item>
</item>
</item>
</item>
</param>
<param name="enabled" xsi:type="boolean">true</param>
</editorConfig>
</settings>
<selectionsColumn name="ids">
<settings>
<indexField>entity_id</indexField>
</settings>
</selectionsColumn>
<column name="entity_id">
<settings>
<label translate="true">ID</label>
</settings>
</column>
<column name="title">
<settings>
<filter>text</filter>
<editor>
<validation>
<rule name="required-entry" xsi:type="boolean">true</rule>
</validation>
<editorType>textarea</editorType>
</editor>
<label translate="true">Textarea</label>
</settings>
</column>
<column name="is_active" component="Magento_Ui/js/grid/columns/select">
<argument name="data" xsi:type="array">
<item name="config" xsi:type="array">
<item name="options" xsi:type="array">
<item name="0" xsi:type="array">
<item name="value" xsi:type="number">1</item>
<item name="label" xsi:type="string" translate="true">Option #1</item>
</item>
<item name="1" xsi:type="array">
<item name="value" xsi:type="number">2</item>
<item name="label" xsi:type="string" translate="true">Option #2</item>
</item>
<item name="2" xsi:type="array">
<item name="value" xsi:type="number">3</item>
<item name="label" xsi:type="string" translate="true">Option #3</item>
</item>
</item>
</item>
</argument>
<settings>
<editor>
<editorType>multiselect</editorType>
</editor>
<dataType>select</dataType>
<label translate="true">Multiselect</label>
</settings>
</column>
...
</columns>
</listing>

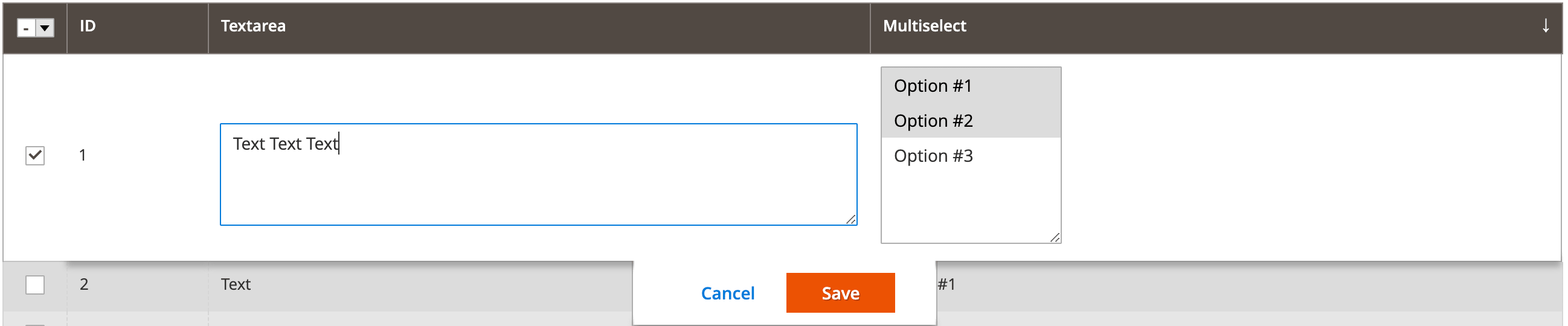

Result
